Manual for washing machine


Use liquid detergents only. Do not use powdered detergents. May result in a leak and/or malfunction.)



Precautions

With ‘Door Locked’, do not open the door by force. Violations may destroy the door or lock, causing technical problems.

Do not press the button with sharp object. Violations may cause electric shock.

Do not operate the washer with the detergent or softener container detached. Detachment of the detergent or softener container causes water leaks during operation. Please close the detergent and softener containers tight. Leaks may cause personal injuries.

Do not use laundry net for wash. Violations may cause abnormal vibrations, which can lead to damage wall or cause personal injuries.

Remove any detergent residue or contaminants on the washer with a wet soft cloth. Remaining contaminants may deform plastic parts.

Close the door carefully to prevent laundry from getting jammed in the door. It may cause damage to clothes or malfunction.

Do not use the washer to wash non-clothing items. (Footwear, potato, cabbage, kelp, etc.)
Violations may cause abnormal vibrations, damage the washer or cause personal injuries.

Put detergent and softener in detergent and softener containers separately. Confusion or mixture may
prevent laundry from being washed properly.

Do not wash waterproof clothes and items such as raincoat, car cover, and sleeping bags. Violations may cause abnormal vibrations during spin, which may lead to personal injuries. Violations may cause abnormal vibrations during wash, which may lead to damage the wall, floor, or clothing and cause part abrasion.



Do not wash thick or voluminous clothes in the washer.

(Jeans, bathing gown, bathroom mat, thick sportswear, etc.)
– As thick clothes are not evenly washed in the tub, vibrations increase during
the spin cycle.



Machine start, opening and placing washing liquid and softener

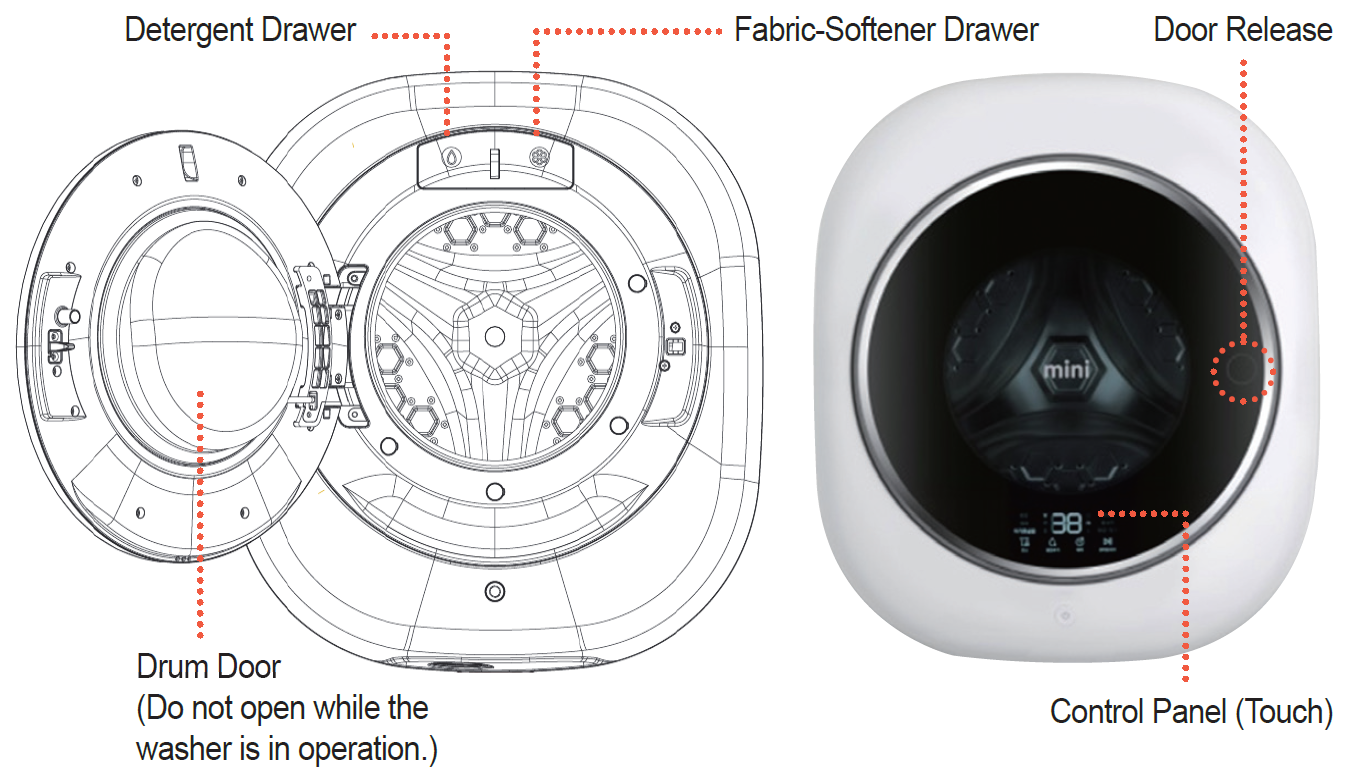

Adding Detergent and Fabric Softener

■ Open: Pull the detergent and fabric-softener drawers towards you.
■ Close: Push the drawers straight in until fully closed.

Adding Detergent
• Add an appropriate amount of detergent into the detergent drawer without exceeding
the MAX level.

Wait! Read this before adding the detergent.
– Do not add detergent to the detergent drawer more than once per wash.
For smaller laundry loads, filling the detergent and fabric-softener drawers halfway up to the MAX levels is sufficient.
– If detergent gets on the door, the control panel, or any other plastic part of the washer, wipe it off right away. If left alone, the detergent can cause damage.
– Using too much detergent can cause the following problems:
• An excessive amount of suds is formed, resulting in much longer or even incomplete rinsing and/or spinning of the laundry load.
Even if rinsing is completed, some of the detergent may still remain.
– The detergent drawer can become contaminated or covered in detergent residue. Remove and clean the drawer once a week for cleaner results.

Adding Fabric Softener
• Add an appropriate amount of fabric softener to the fabric-softener drawer.
• The softener is automatically added to the drum during the final rinsing stage.
• Do not add fabric softener and allow it to sit for an extended period of time (longer than 12 hours).
The softener can harden and fail to make its way inside the drum.

Appropriate Detergent and Fabric Softener Amounts
• Use the recommended amount.
– Do not exceed the detergent drawer’s MAX level.
– Do not exceed the fabric-softener drawer’s MAX level.

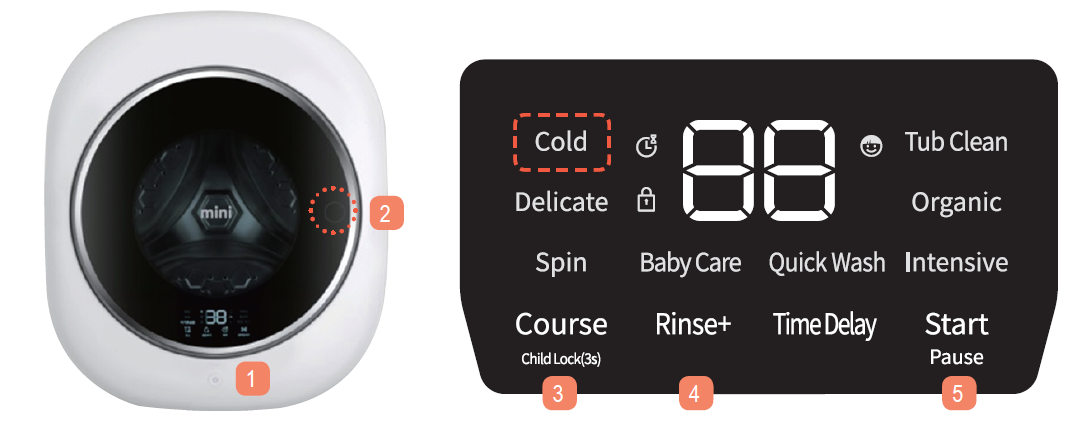

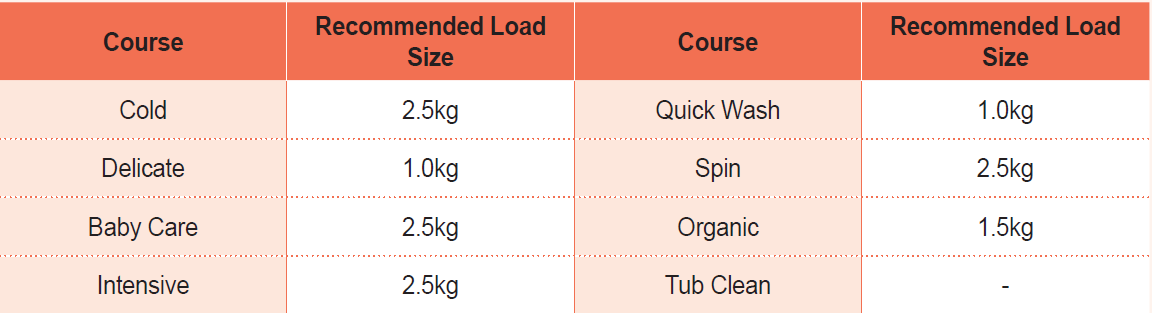

Course Selection Guide



Use this course to wash everyday items like towels, socks, and dress shirts and regular laundry.

1) Turn on the washer by pressing the Power button (①).
2) Open the drum door. (Press the Door Release button (②) to open the drum door).
3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut.
Make sure to close the detergent and fabric-softener drawers completely before proceeding.
4) Repeatedly press the Course button (③) until Cold is selected.
5) Press the Start/Pause button (⑤).
The door will lock, and the washer will start filling with water.

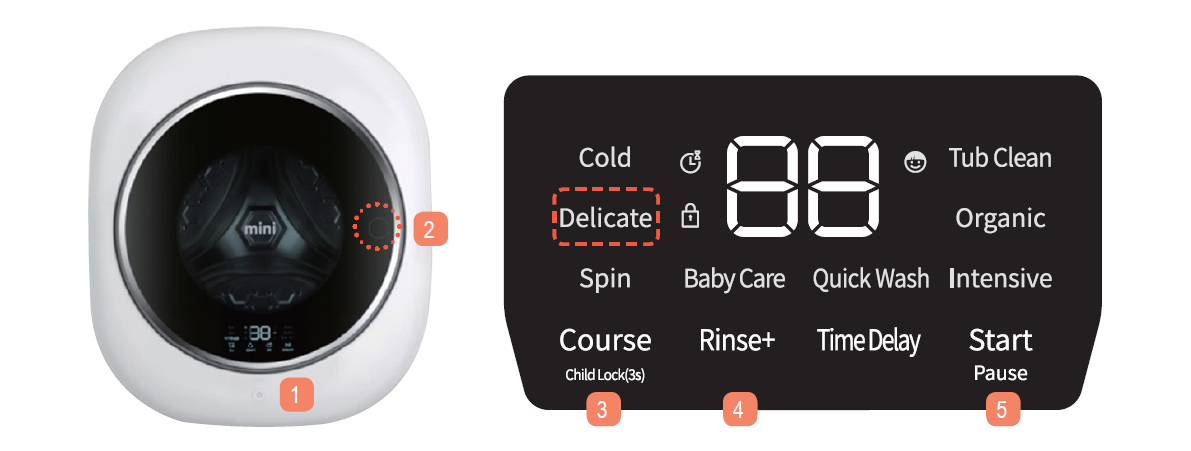

Ideal for washing knits, woolen clothes, lingeries, and other delicates that can be washed in water.

1) Turn on the washer by pressing the Power button (①).
2) Open the drum door (Press the Door Release button (②) to open the drum door).
3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut.
• Make sure to close the detergent and fabric-softener drawers completely before proceeding.
• Bleach cannot be used with Delicate course. This is to prevent discoloration of clothes.
• Limit the size of the laundry load to 1kg when using the Delicate course.
※ Exceeding the recommended laundry-load size may result in abnormal noise, abnormal vibration, and/or a malfunction.
4) Repeatedly press the Course button (③) until Delicate is selected.
• Water temperature is set to cold, rinse cycles is set to 2, and spin strength is set to low automatically.
5) Press the Start/Pause button (⑤).
The door will lock, and the washer will start filling with water.

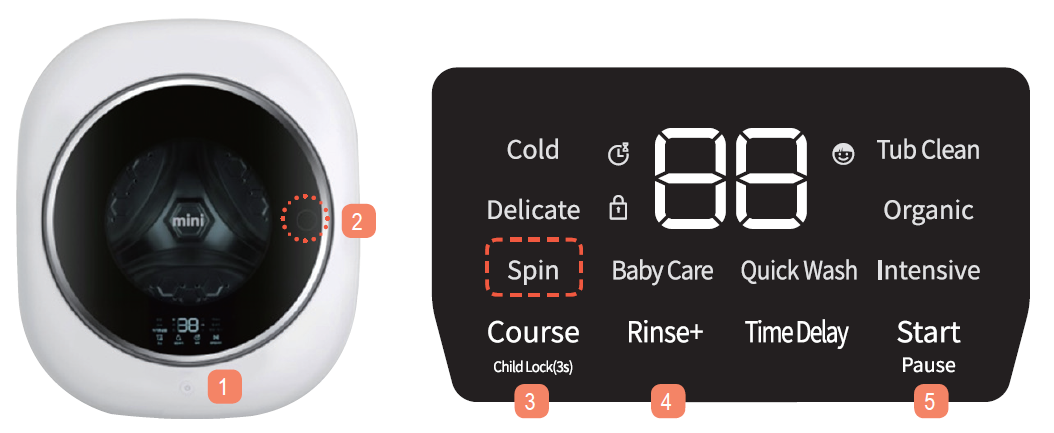

Use this course to spin your laundry dry without washing or rinsing.

1) Turn on the washer by pressing the Power button (①).
2) Open the drum door. (Press the Door Release button (②) to open the drum door).
3) Once the door opens, place the laundry inside the washer and then close the door.
Make sure to close the detergent and fabric-softener drawers completely before proceeding
4) Repeatedly press the Course button (③) until Spin is selected.
• Water temperature is set to cold, rinse cycles is set to 0, and spin strength is set to high automatically.
5) Press the Start/Pause button (⑤).
The door will lock and the drum will start to spin.

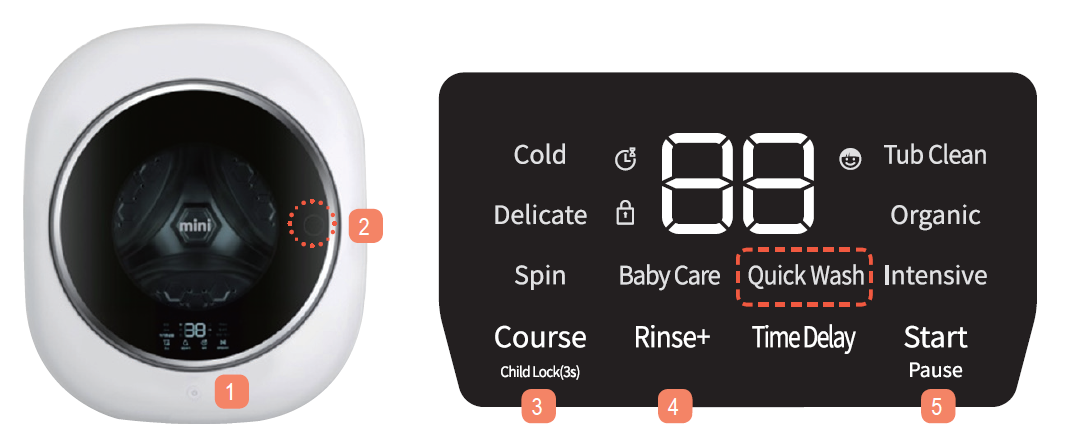

Use this course for quick washing of small amounts of laundry.

1) Turn on the washer by pressing the Power button (①).
2) Open the drum door. (Press the Door Release button (②) to open the drum door).
3) With the door open, place the laundry inside the washer, add detergent and fabric softener to their respective drawers, and then close the drum door shut.
Make sure to close the detergent and fabric-softener drawers completely before proceeding.
Limit the size of the laundry load to 1kg when using the Quick Wash course.
※ Exceeding the recommended laundry-load size may result in abnormal noise, abnormal vibration, and/or a malfunction.
4) Press the Course button (②) to select Quick Wash.
• Water temperature is set to cold, rinse cycles is set to 1, and spin strength is set to high automatically.
5) Press the Start/Pause button (⑤).
The door will lock, and the washer will start filling with water.
